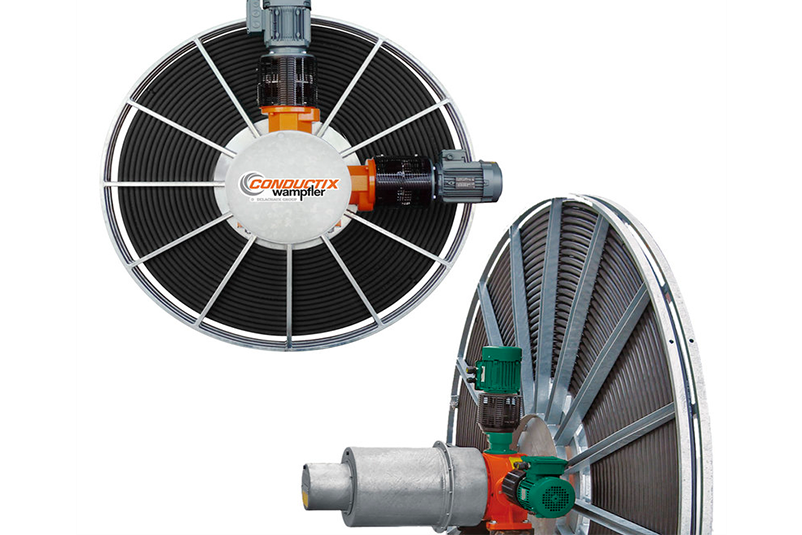

Modular mounting system - The cable reel can be upgraded after installation by adding drive units.
Magnetic Coupling Driver (MAG Drive) or Variable Frequency Drive (SMART Driver)
without any maintenance It has a working capacity of 5 years or 15,000 hours - gearboxes are grease-lubricated from the factory.
Optimum corrosion protection in aggressive environmental conditions. - flanges and pulley pulley are made of galvanized steel or stainless steel.
Typical applications:- Ship to shore (STS) cranes
- Rail Mounted Port (RMG) cranes
- ship unloaders
- Stackers / blenders
- shipbuilding cranes
feedrate
- Magnetically coupled AC motor (MAG drive): up to 100 m/min
- Variable frequency (SMART Drive) controlled: up to 180 m/min
Winding Length: 700 m max.
Outer diameter of reel:
- Monospiral spool: 1,100 mm - 8,000 mm
- 3-2-3 reel: 1,100 mm - 8,000 mm
Gear box:
- Type BNA: 1,100 Nm - 19,000 Nm
- Type X07: 1,100 Nm - 11,000 Nm
Slip Ring assembly:
- Power low voltage max: 690 V - 1,600 A
- Power high voltage max.: 24,000 V - 500 A
- Control max.: 500 V - 25 A
- Data: Fiber Optic, mA
Temperature range: -40 °C - +60 °C
